Alembic Industrial Heritage & Re-development, Vadodara (Phase 1)

  • Typology Transformation, Architecture and Interior
  • Location Vadodara
  • Area 13,000 sq.ft
  • Year 2019

Alembic Museum, Art studios, Exhibition and Display space.

In its 110 th year of existence, the first ever Alembic industrial building in Baroda has seen multiple surgical interventions. Similar to many old factory buildings, the building got altered over time due to change in the original purpose of the facility. Starting from manufacturing penicillin to alcohol.

The evolution of the space continues today with a call for an extended program. The space within is meant to serve the Alembic Museum, art studios, display and exhibition space with ancillary spaces for a library, AV room and a café.

Phase I is a critical part that will eventually be seen in phase II and III.

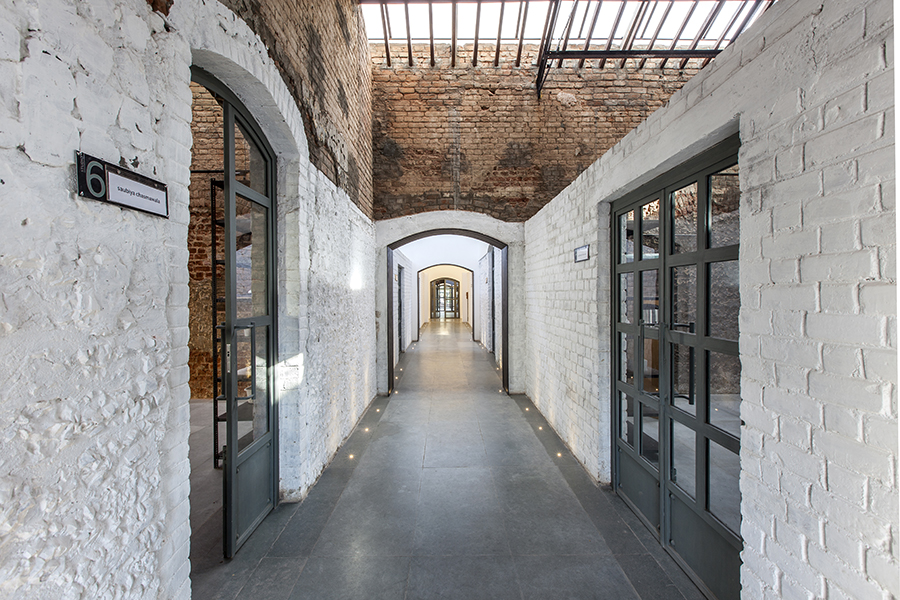

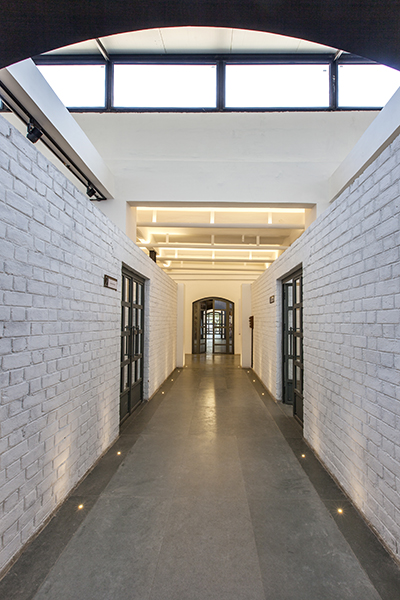

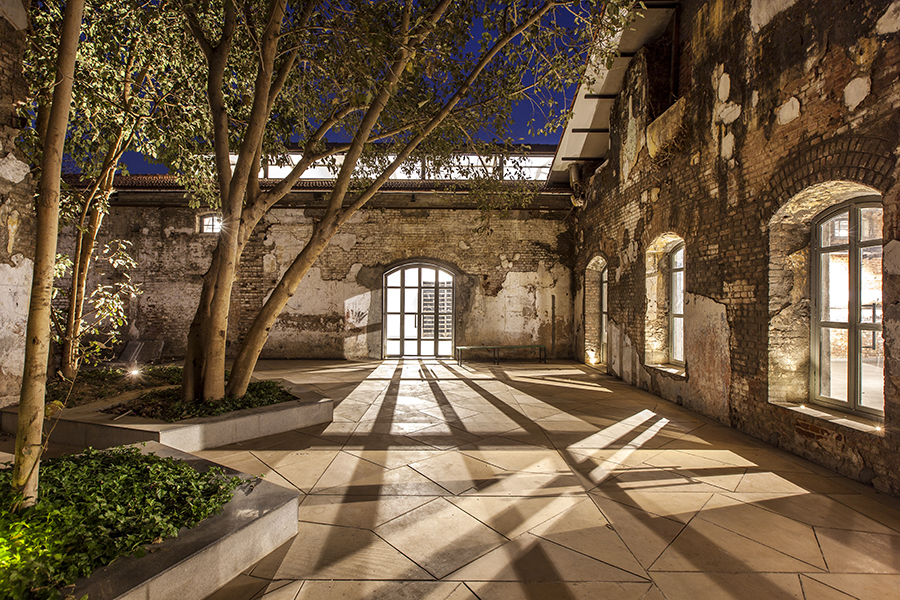

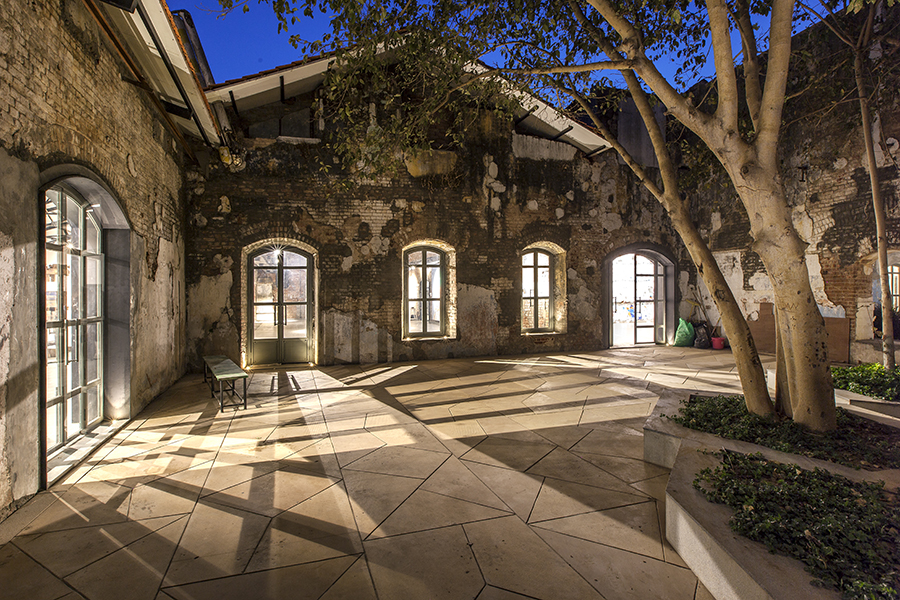

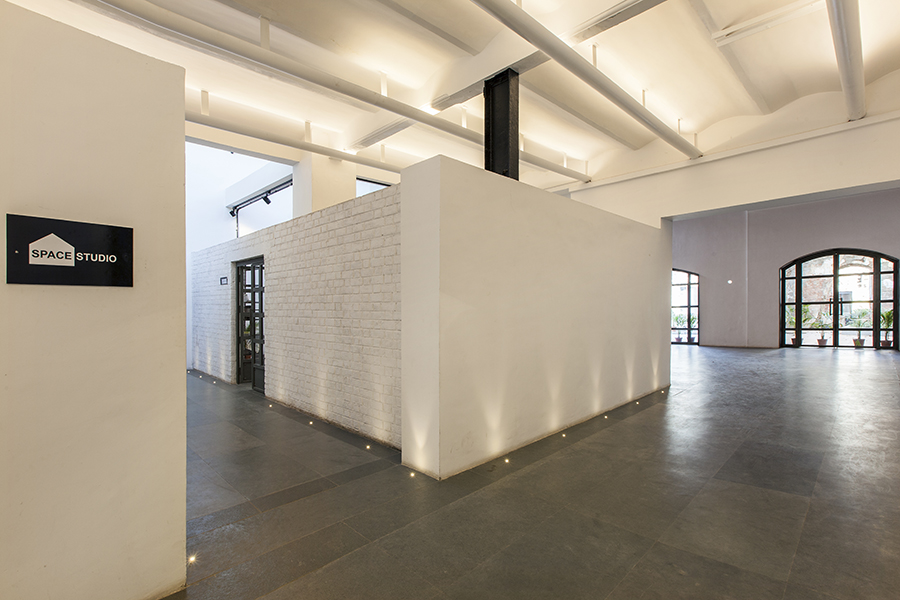

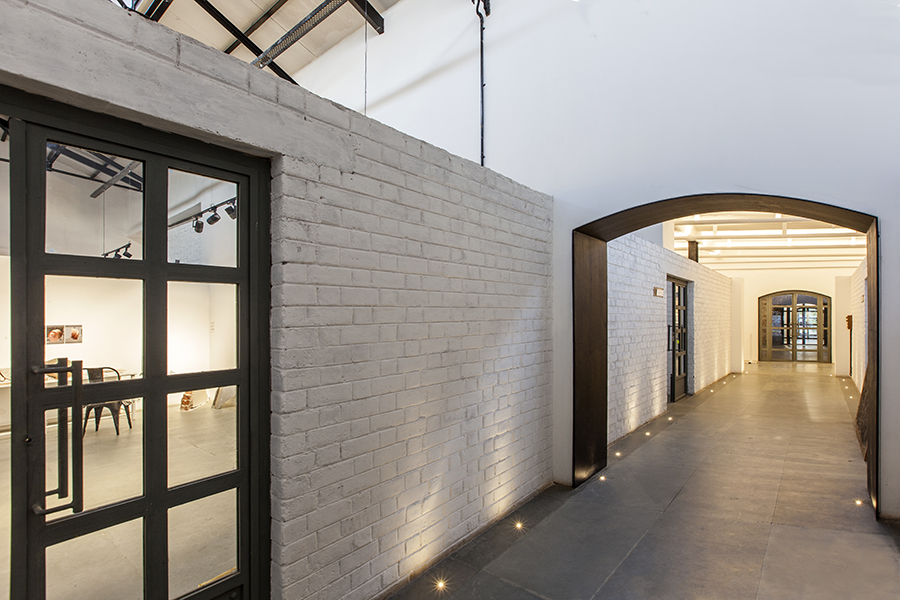

Our architectural purpose was to approach this is a sculpture. is to maintain the true spirit of the building in terms of materials and the physical quality of the space. The only new architectural elements are new partition walls in between studio spaces. The existing building is characterized by arches, which have been blocked. We are opening up as many arches considering the structure of it.

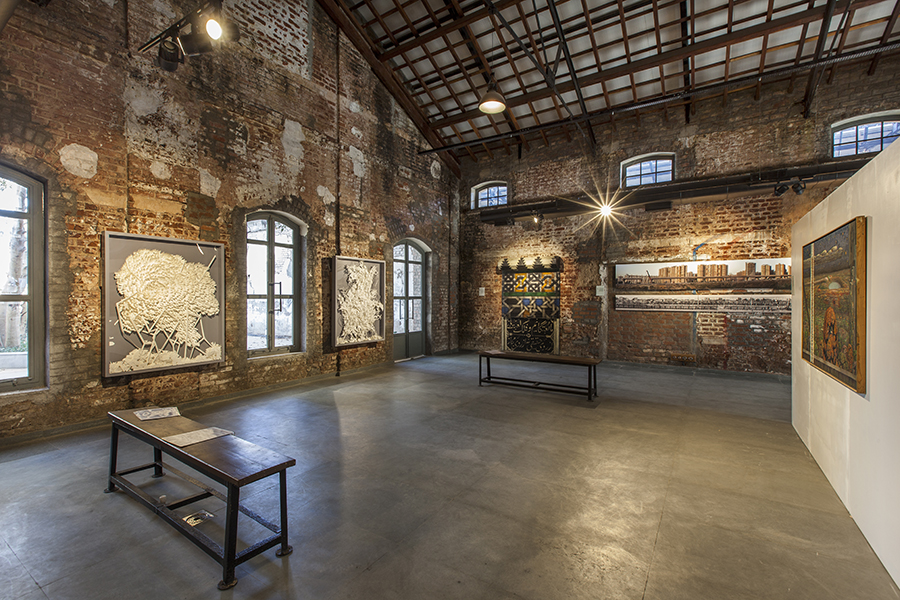

The thickness of the main load-bearing walls averages at 0.45m and provides the interior with excellent insulation. We are in the process of creating samples for the finish of the walls. We will be using either sand – blasting or water jet treatment in order to remove the plaster from the brick. In many areas, the plaster is already peeling off and would like to continue with the same.

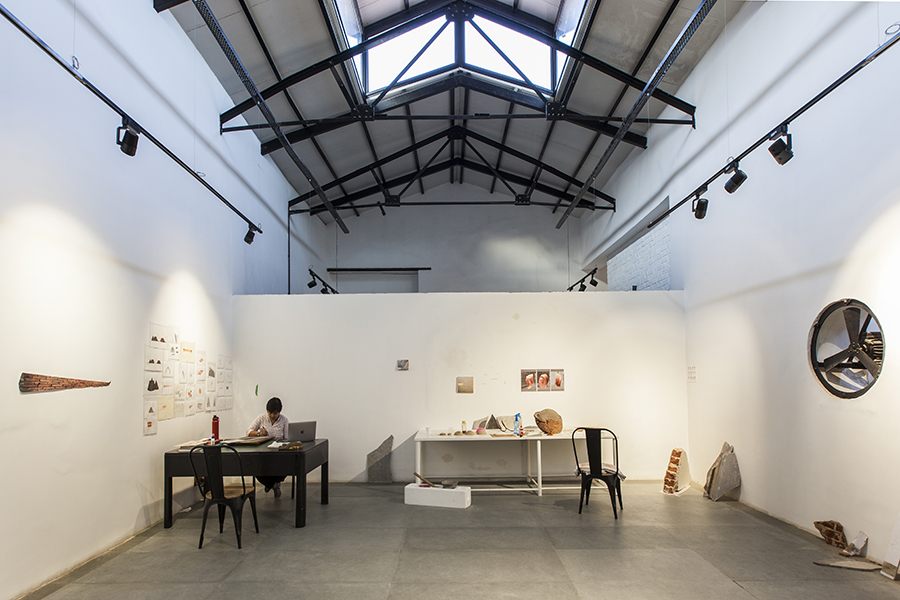

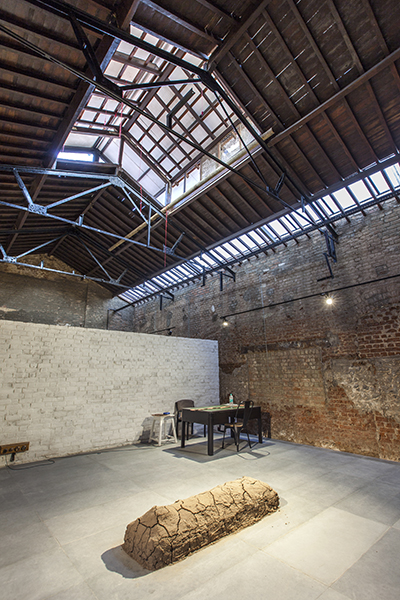

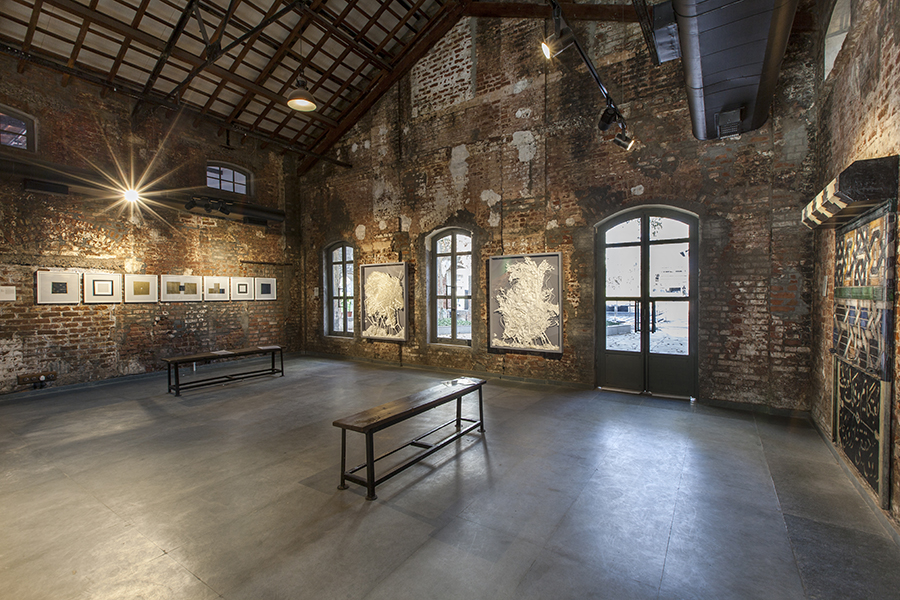

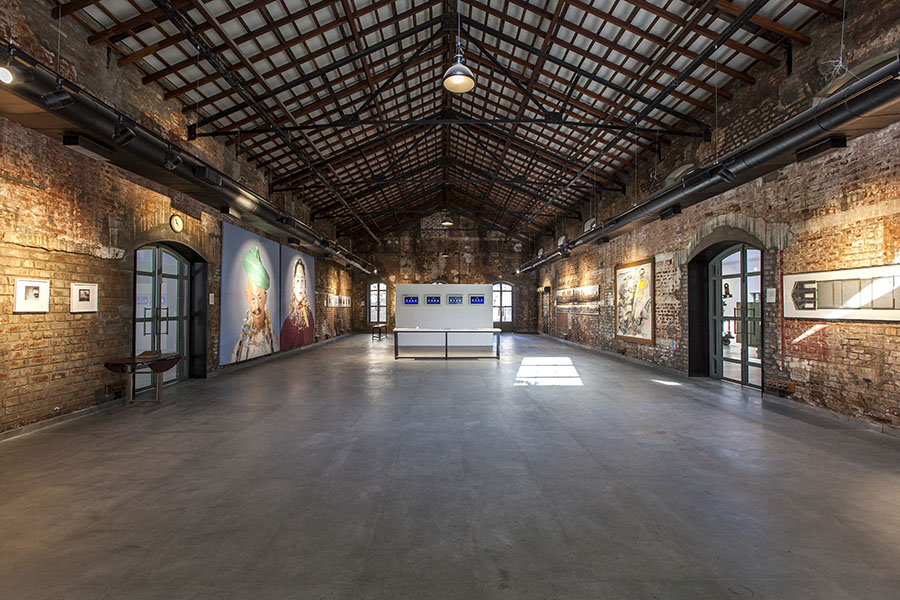

Another major architectural element is the design of the roof. There are a few structural details that caught our eye. The trusses are riveted as opposed to being welded. The detail of the riveted trusses, is dare I say, riveting. Fortunate for us many of the trusses are in great condition. Only a handful of the trusses will require strengthening. The existing exterior roof material is of Mangalore tiles. These terracotta tiles are battered and will have to be removed. New Mangalore tiles will be installed with added insulation above the top-chord of the truss. We are very keen to leave the purlins and rafters exposed to express the quality of the structure that it once was.

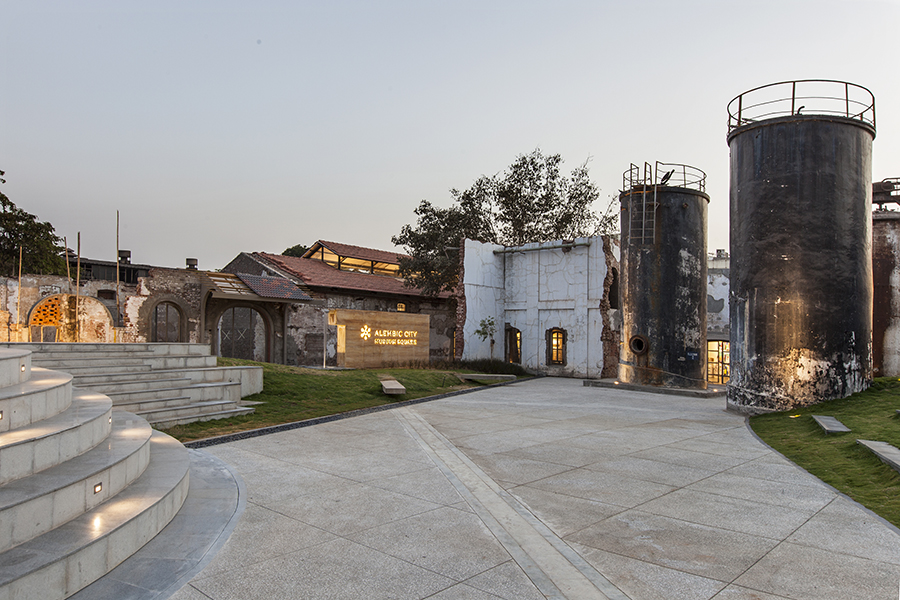

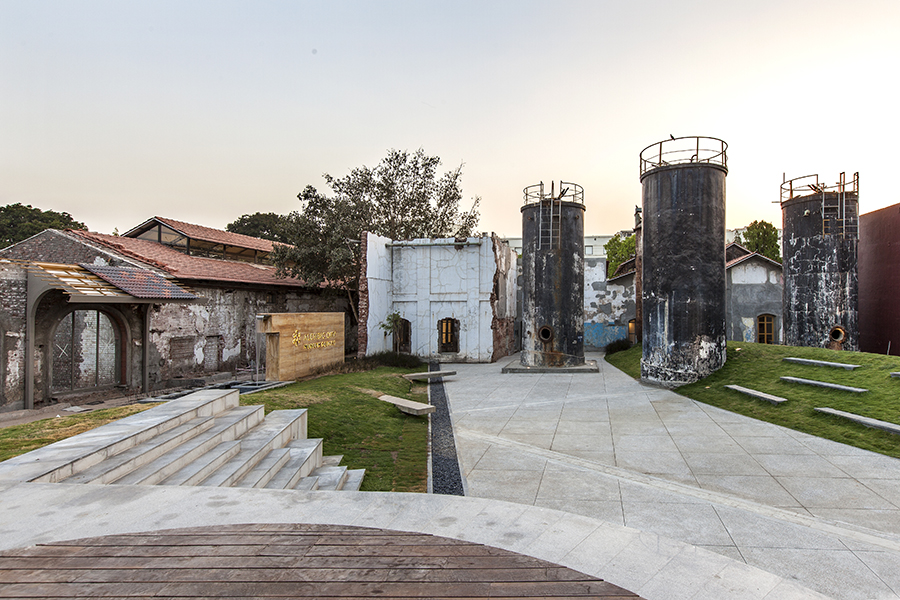

The Alembic factory is located in the middle of the city and along the main railway line of the city of Baroda. The re-development of the industrial area will see major interventions in other parts of the campus.
